In the world of fluid handling and industrial processing, the mechanical seal is a critical component that ensures the integrity, safety, and efficiency of rotating equipment. EagleBurgmann (often referred to as Burgmann) is a global leader in sealing technology, and their designs are widely recognized as the industry standard. For maintenance engineers and procurement specialists, sourcing high-quality replacement seals that match the original specifications is crucial for minimizing downtime and controlling costs.
This article explores the most popular Burgmann replacement mechanical seal models, analyzing their design features and specific industrial applications. Whether you are dealing with aggressive chemicals, abrasive slurries, or high-purity food products, understanding these models will help you select the right sealing solution.

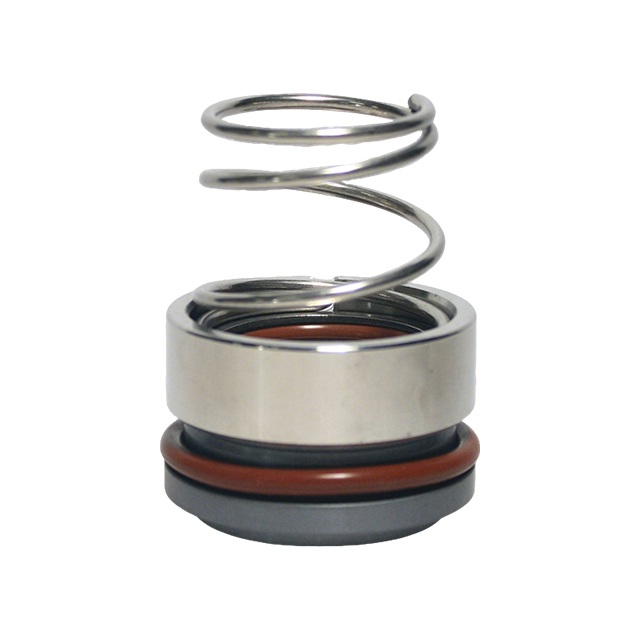

The Burgmann M3N, M32, and M37N models are among the most widely used mechanical seals in the world. They belong to the category of "pusher seals" and are known for their robust and simple design.
Conical Spring Drive: Unlike seals that rely on set screws or drive pins (which can damage the shaft), the M3 series utilizes a rotating conical spring. This spring grips the shaft directly to transmit torque. This design is not only secure but also eliminates the risk of shaft fretting.
Self-Cleaning Action: The open geometry of the conical spring allows liquids and solids to be expelled centrifugally. This prevents the spring from clogging with fibers or sludge, making it highly reliable in less-than-ideal media.
Material Versatility: The series offers variations like the M37N, which features a silicon carbide (SiC) face shrink-fitted to the carrier, allowing it to handle higher temperatures (up to 180°C) and more corrosive environments.
Water & Wastewater: Ideal for clean water pumps and sewage applications due to the self-cleaning spring.
Chemical Industry: Used in standard chemical pumps for non-critical services.
Food & Beverage: The M3 variant is available with FDA-compliant dry-running materials, making it suitable for mixers where occasional gas contact may occur.
When applications demand higher pressure resistance and independent rotation, the Burgmann M7N series is the go-to choice. This is a multi-spring, balanced seal designed for more demanding conditions.
Wave Spring Technology: The Burgmann M7N uses a wave spring (or multi-spring) design. This allows for a shorter installation length and better face loading distribution compared to single-spring designs.
Drive Pins: Torque is transmitted via robust drive pins or lugs. This ensures positive rotation even when handling high-viscosity fluids like oils or resins.
Loose Face Fit: The seal face is loosely inserted into the driver. This allows the face to self-align with the counter-face, reducing the risk of heat distortion caused by shaft deflection.
High-Pressure Pumps: Capable of handling pressures up to 25 bar, suitable for boiler feed pumps and high-pressure wash systems.
Refineries & Petrochemicals: The balanced design reduces heat generation, making it suitable for hot oil and hydrocarbon services.
General Industry: A standard replacement for many process pumps requiring a compact, high-performance seal.
The Burgmann MG1 and Burgmann MG12 models are the industry benchmark for elastomer bellows seals. They are simple, cost-effective, and highly effective for a wide range of duties.
Integrated Bellows: The rubber (NBR, FKM, or EPDM) bellows acts as the secondary sealing element, the face carrier, and the drive mechanism. There are no bonded joints, which simplifies maintenance.
Shaft Protection: The bellows covers the shaft, protecting it from corrosion and wear.
Rotation Independence: These seals are designed to be independent of the direction of rotation, simplifying inventory management.
Variants: The Burgmann MG12 is essentially an Burgmann MG1 with an extended bellows tail to meet specific DIN fitting lengths, while the MG13 offers different dimensional standards.
Submersible Pumps: The MG series is the standard for residential, commercial, and industrial submersible pumps.
Wastewater Treatment: Highly recommended for duties containing solids, as the flexible bellows accommodate shaft misalignment common in older equipment.
HVAC & Building Services: Widely used in circulation pumps for heating and cooling systems.
For complex applications where installation error must be eliminated, cartridge seals and gas seals are preferred.
Features: These are pre-assembled units. The H75N is a balanced design for high pressure, while the HJ92N is designed for vertical turbine pumps with a protected wave spring to prevent fouling.
Application: Large agitators, vertical turbines, and high-pressure tandem pump setups.
Features: Designed for "zero leakage." These seals use a gas film to separate the faces, consuming significantly less energy than liquid-lubricated seals.
Application: Monoblock pumps and compressors in the oil & gas sector where emission control is critical.
Selecting the correct Burgmann replacement seal involves matching the model number, shaft size, and material combination (e.g., Carbon vs. SiC, NBR vs. Viton).
Choose M3N/M37N for general-purpose pumps requiring a self-cleaning, conical spring design.
Choose M7N for high-pressure or high-temperature applications requiring a compact, balanced seal.
Choose MG1/MG12 for submersible pumps and wastewater applications where cost-effectiveness and shaft protection are key.
By understanding these distinct features, engineers can ensure that their replacement seals not only fit but perform equivalently to the original OEM parts, maintaining the safety and efficiency of their industrial operations.
