How to Choose the Right Cartridge Mechanical Seal for Your Centrifugal Pump
A Complete Specification Guide for Maintenance Managers & Procurement Teams

A centrifugal pump is only as reliable as the mechanical seal protecting its stuffing box. In chemical plants, water treatment facilities, refineries, and food processing lines, more unplanned pump downtime traces back to seal failure than to bearings, impellers, or motor faults combined. For maintenance managers and procurement teams, the single most impactful decision is moving from component seals to cartridge mechanical seals — and then selecting the correct cartridge configuration for the exact duty.

At NINGBO MIAOYU MACHINERY TECHNOLOGY CO., LTD., we manufacture a full range of cartridge mechanical seals as OEM/ODM equivalents for John Crane, Burgmann (EagleBurgmann), AESSEAL, Flowserve, and Grundfos. This guide walks through every variable you need to evaluate — from shaft size and pressure to fluid chemistry and temperature — so you can specify the right cartridge the first time and avoid the costly cycle of premature failure and emergency replacement.

Get selection quotes and drawings for Miaoyu cartridge mechanical seals

Why Cartridge Seals Outperform Component Seals

A component mechanical seal arrives as loose parts: rotary face, stationary seat, springs, drive collar, elastomers. The installer must measure spring compression, set the working length, and assemble everything inside the stuffing box. One miscalculation — a spring compressed 1/16" too far or a face set 0.5 mm too deep — and the cartridge mechanical seal fails within days.

A cartridge mechanical seal ships fully pre-assembled on a sleeve with a gland plate and setting clips that lock the factory-set compression. Installation is straightforward: slide the cartridge onto the shaft, bolt the gland to the stuffing box, tighten the drive collar set screws, and remove the setting clips. There is no spring-length math, no loose parts to drop into the pump, and no field assembly error.

Lifespan Comparison： For centrifugal pumps in continuous chemical or water service, cartridge mechanical seals routinely deliver 18–36 months of operation versus 3–9 months for field-assembled component seals. The labor savings alone — a 30-minute cartridge swap versus a 2-hour component rebuild — justify the modest price premium.

Step 1: Identify the Pump and Shaft Details

Every cartridge mechanical seal specification starts with the pump. You need three measurements:

Shaft diameter — the most critical dimension. Standard series cover 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 28 mm, 30 mm, 32 mm, 35 mm, 40 mm, 45 mm, 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 90 mm, and 100 mm. A 35 mm shaft is among the most common in chemical centrifugal pumps.
Stuffing box bore (D3/D7) — the inside diameter of the cartridge mechanical seal chamber where the gland plate seats.
Seal chamber depth (L3) — from the stuffing-box face to the impeller rear shroud.

These three dimensions define the envelope. Most standard pumps (ANSI B73.1, ISO 5199/DIN 24960) follow predictable envelopes, so a John Crane 58U cartridge at 35 mm, a Burgmann M7N cartridge at 35 mm, and a Miaoyu MY-58U or MY-M7N at 35 mm share the same dimensional footprint. This interchangeability is what allows maintenance teams to standardize on one supplier without re-machining the pump.

Quick Reference for Common Pump Brands and Shaft Diameters：

Grundfos CR/CRI vertical multistage: 12 mm, 16 mm, 22 mm, 28 mm, 32 mm
KSB Etanorm / CPKN: 35 mm, 45 mm, 55 mm, 70 mm
Sulzer APP / AHLSTAR: 40 mm, 50 mm, 65 mm, 80 mm
Goulds 3196 (ANSI): 1.375", 1.750", 2.125", 2.500" (35 mm, 44.5 mm, 54 mm, 63.5 mm)

Step 2: Define the Fluid — Chemistry Dictates Everything

The pumped fluid determines face materials, elastomer type, and whether you need a single or double seal.

Water and mild aqueous fluids (pH 6–8, ≤80 °C): Carbon vs Silicon Carbide faces, NBR or EPDM O-rings. A standard O-ring pusher cartridge like the John Crane 58U, Burgmann MG1/M7N, or Miaoyu MY-58U is the economical choice.
Hot water and boiler feed (120–180 °C): Carbon vs SiC or TC vs SiC faces, EPDM or FKM. Consider a stationary bellows or a balanced cartridge to control face heat.
Acids and aggressive chemicals: Silicon Carbide vs Silicon Carbide faces for maximum corrosion resistance. FKM for most acids below 150 °C; PTFE wedge or welded metal bellows for halogenated acids, concentrated sulfuric above 120 °C, or hot caustic.
Hydrocarbons and oils: Tungsten Carbide vs Silicon Carbide or Carbon vs TC. FKM elastomers. For hot oil above 200 °C, a metal bellows cartridge (John Crane 606, Burgmann H7N, Miaoyu MY-606) is mandatory — no O-ring can survive.
Slurries and abrasive fluids: Tungsten Carbide vs Silicon Carbide. The hard-face pair resists abrasive wear. A single cartridge with flush plan (API Plan 32 or 53A) keeps solids away from the lapped faces.

Step 3: Temperature and Pressure Limits

Parameter	Standard O-Ring Cartridge	Metal Bellows Cartridge
Max continuous temperature	~200 °C (FKM), ~250 °C (FFKM)	400–425 °C
Min temperature	-40 °C (FKM), -50 °C (EPDM)	-100 °C (bellows + grafoil)
Max pressure (balanced)	16–25 bar	16–25 bar
Max shaft speed	≤25 m/s	≤25 m/s

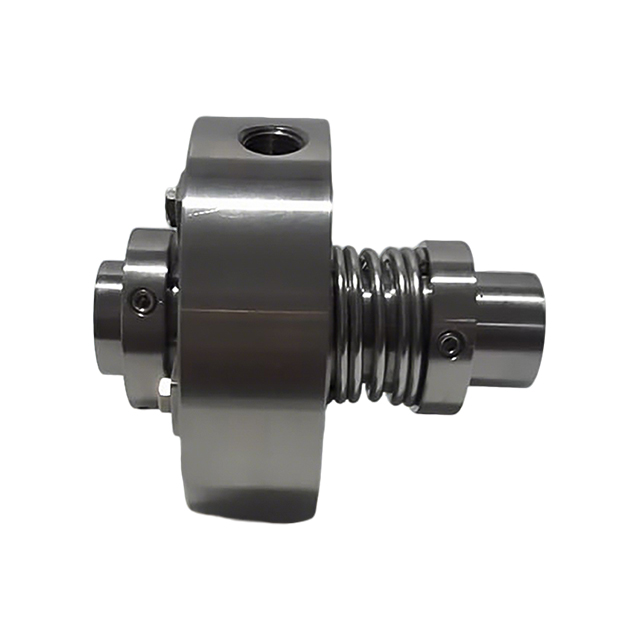

Important Notice： For any service above 200 °C — hot oil, asphalt, amine, steam — the elastomer in an O-ring cartridge will degrade. A welded metal bellows cartridge removes the dynamic elastomer entirely, using an all-metal bellows (316SS, Inconel 625, or Hastelloy C-276) as spring, torque transmitter, and secondary seal.

Step 4: Single, Double, or Tandem Arrangement?

Single cartridge seal (Arrangement 1): One seal set. Suitable for clean, non-toxic, non-flammable fluids at moderate pressure. Examples: John Crane 58U, Burgmann M7N, AESSEAL M03S, Miaoyu MY-58U.
Double cartridge seal (Arrangement 3): Two seals face-to-face with a barrier fluid between. Required for toxic, flammable, abrasive, or vacuum service. The barrier fluid (typically clean water, oil, or compatible solvent) is pressurized 1–2 bar above the pump pressure. Examples: John Crane 5020, Burgmann Cartex-SN, Miaoyu MY-DOUBLE series.
Tandem seal (Arrangement 2): Two seals in series for high-pressure or high-temperature duty where a double seal will not fit. Less common in standard centrifugal pumps.

For most water treatment, HVAC, and mild chemical transfer, a single cartridge is correct. For chlorine, phosgene, hot concentrated acids, or flammable solvents, specify a double cartridge.

Request a Custom Proposal for Double-Seal/Metal Bellows · Material Certificates Included

Step 5: Match the Brand-Interchange Model

Original Model	Type	Shaft Range	Miaoyu Equivalent
John Crane 58U / 59U	Single O-ring pusher	14–100 mm	MY-58U / MY-59U
John Crane 606 / 604	Metal bellows	25–100 mm	MY-606 / MY-604
Burgmann M7N / M3N	Single balanced pusher	25–100 mm	MY-M7N / MY-M3N
Burgmann H7N / H75N	Stationary bellows	25–110 mm	MY-H7N / MY-H75N
AESSEAL M03S / M02S	Single pusher	14–100 mm	MY-M03S / MY-M02S
Flowserve 5600 / 4600	Single cartridge	25–100 mm	MY-FL5600
Grundfos CR Cartridge	OEM cartridge	12–32 mm	MY-GF-CR

Five Essential Elements for a Price Inquiry： When requesting a quote, always provide: pump model + shaft diameter + original seal model tag number + fluid + temperature + pressure. This five-point data set lets the cartridge mechanical seal manufacturer return a confirmed interchangeable part with zero dimensional risk.

Step 6: Face Material Selection Guide

Fluid Condition	Rotary Face	Stationary Face	Elastomer
Clean water, ≤80 °C	Carbon (Resin Impregnated)	SiC	NBR
Hot water, ≤180 °C	Carbon (Antimony Filled)	SiC	EPDM
Mild chemicals, ≤150 °C	SiC	SiC	FKM
Acids, ≤120 °C	SiC	SiC	FKM
Hot acids, >150 °C	SiC	SiC	PTFE / Grafoil
Hydrocarbons, ≤200 °C	TC	SiC	FKM
Hot oil, >200 °C	SiC	SiC	Metal Bellows
Slurries / abrasives	TC	SiC	FKM or PTFE

Why Source from NINGBO MIAOYU MACHINERY TECHNOLOGY CO., LTD.

Miaoyu Core Advantages：

Full interchangeability — Every Miaoyu cartridge is dimensionally matched to the original John Crane, Burgmann, AESSEAL, Flowserve, or Grundfos drawing. Same gland bolt circle, same setting length, same spring load.
Material certification — SiC, TC, carbon, and ceramic batches come with material test reports. Face flatness is verified to ≤0.0002 mm (3 helium light bands).
Custom engineering — Non-standard shaft sizes, exotic alloys (Hastelloy C-276, Inconel 625, Titanium), and special flush connections are available with drawing approval in 24 hours.
Stock and lead time — Standard models (58U, M7N, M03S, 606) in 35 mm, 45 mm, 50 mm, and 55 mm ship from stock. Custom cartridges in 15–25 days.
Competitive pricing — Factory-direct pricing at 30–60% below European list prices for equivalent specifications.

Quick Specification Checklist

Please gather the following 8 items of data before requesting a quote：

Pump manufacturer and model (e.g., Grundfos CR 45-3, KSB Etanorm 50-250)
Shaft diameter (mm or inch)
Stuffing box bore and depth (if non-standard)
Fluid name and concentration (e.g., 30% NaOH, 98% H₂SO₄, clean water)
Temperature (°C or °F, continuous and peak)
Pressure (bar or psi, suction and discharge)
Speed (RPM, if known)
Existing seal model tag (e.g., John Crane 58U-35, Burgmann M7N-45)

Send these eight points to the Miaoyu engineering team and receive a written recommendation with drawing, material specification, and ex-works price within 24 hours.

Bottom Line

Selecting the right cartridge mechanical seal for a centrifugal pump is a matter of matching five variables — shaft size, fluid chemistry, temperature, pressure, and safety requirement — to a proven seal platform. For water and mild chemicals below 150 °C, an O-ring pusher cartridge (John Crane 58U / Burgmann M7N / AESSEAL M03S class) is the cost-effective standard. For hot oil, aggressive acids above 150 °C, or halogenated service, step up to a welded metal bellows cartridge (John Crane 606 / Burgmann H7N class). For toxic or flammable fluids, a double cartridge is non-negotiable.

NINGBO MIAOYU MACHINERY TECHNOLOGY CO., LTD. manufactures all three categories to OEM-interchange dimensions, with full material traceability and a 12-month leak-free warranty. Whether you need a single replacement for a Grundfos CR vertical pump or a bulk order of 58U equivalents for a refinery turnaround, the engineering team is ready to confirm the specification and ship.
